Fish Feeder Housing Modifications.

Well… After 15 months of saving up my pennies and dimes, I could finally afford to buy the $12 fish feeder and the $12 servo to make the first part of my Internet Aquarium that will be ran off my Rabbitcore 3700.

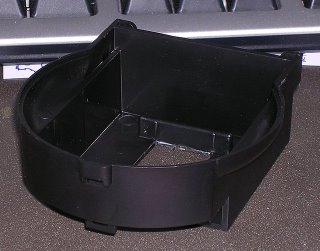

The feeder housing showing part of the cutout and the factory provided modification marks I notched out the back for the Servo. I needed to cut out that tab so there was room for the mounting bracket for my Futaba S3003 servo. Lucky for me, there are 2 little marks that lined up exactly where I needed to cut.

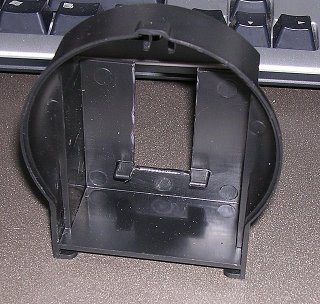

Final cutout in the automatic fish feeder housing for the servoHere you can see the cut-out for my servo.

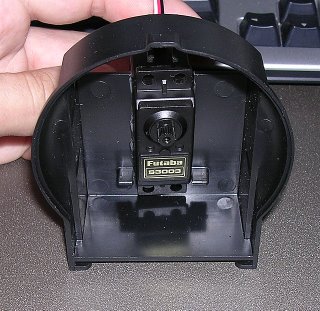

This is how the servo will look installed into the automatic fish feeder housringThis is how the servo will set into the housing. I still need to figure out the stand-offs. I have 2 options, shim it up with plastic or wood, or create nut and bolt stand-offs. The servo isn’t going to face much resistance, so I think that the bolts would be the best bet.

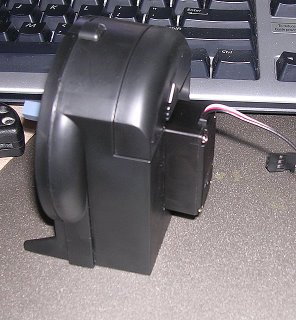

This is how the servo will look installed into the automatic fish feeder housringHere is what the feeder and servo looks like brom the back. The servo is just sitting in the houseing, but that is really close to where it will be located. Posted by Picasa.
